In this post let’s see how Microsoft Teams’ capability to embed tools and applications on Teams channels can be leveraged to enhance collaboration and visibility within a team.

We will create a Power App to record Objectives and Key Results (OKR) of employees and teams. We then create a Power BI report to better visualize the data and metrics. The Power App and the Report will be added as tabs to the Teams channel so that users can collaborate with their team members, keep updating the OKR, and view the progress charts.

Let’s Get Started!

Data Model

One of the critical aspects of the app is to identify the attributes that are needed to capture relevant data. As the name suggests, Objectives and Key results are the primary attributes that will be needed. Along with that, we will also have to create Owner (users), the Team (to which the owners belong), and the Progress Bar to track the completion of the “Key Results” on the “Objective”. For this app, we will use a SharePoint List as a data source and implement the above data model.

Power Apps

  1. The canvas app is created in a tablet mode and the SharePoint list is added as a data source. Relevant styling and functionality are built in the app.
  2. This is a screen on which the data from SharePoint is displayed in the context of the current logged in user. Users can perform CRUD operations on the data from this screen.Canvas App in SharePoint
  3. This tab displays basic information such as the current date and the currently logged-in user.
  4. This is a refresh button that refreshes the data source and brings the latest data to the app.
  5. This icon creates a new item in SharePoint with a parent title to store the Objectives.
  6. This is a gallery control that displays data from the SharePoint list. Each objective can have multiple key results that can be created by hitting the ‘+’ icon in the gallery.

Power BI

The data stored on the SharePoint list is analyzed via charts on a Power BI report. Charts are created to visualize metrics as below:

  1. Percentage objective completion
  2. Objective completion by team
  3. Objective completion by individual users

Data stored on the SharePoint list is analyzed via charts on a Power BI report

Relevant metrics can be similarly visualized using charts in Power BI and the data set can be set to refresh on a schedule.

MS Teams (Setup in Action)

Team members can collaborate on a single channel and do not have to switch between devices, platforms, screens, applications, etc. The canvas app is added to the Teams channel as a tab as shown in the image below.

MS Teams Set Up in Action

The Power BI report is added to the channel as a tab as shown in the image below.

Power BI Report

In this post we saw how day-to-day processed within groups in an organization can be digitally transformed to apps using Power Apps, metrics analyzed on Power BI visuals can be implemented on MS Teams channels to enhance collaboration and teamwork.
Teammates can view their respective objectives, responsibilities, and track their productivity in a single place without having to launch or switch between different applications or reports.

Processes like these bring transparency in evaluating productivity with respect to the tasks, teamwork, and individual standpoints. Microsoft Teams is a great way to enable your teams to better collaborate, and plugging in Power Apps, Power BI, and other tooling can snowball the impact it has on your organization’s digital transformation efforts.

I hope you found this interesting and it helped you. If you’re looking to empower your team with a similar solution, check out our Accelerated Teams Enablement or Teams Governance Quick Start offerings, as well as our Power Platform Quick Start! Thank you for reading!

In this article, I will show you how we can create reusable custom components in canvas apps. We will work on two simple limitations on the current controls in Canvas Apps and create custom components to overcome those limitations.

1. A specific range cannot be set on the date picker control that would limit the users from selecting dates from a specific range only.

2. Power Apps currently limits the text input control to two formats i.e., text and number. We will create a custom component to support ‘regex’ as a general setting that can be applied to multiple input fields of the same format. Let’s get started. We will first create the components and then see how to use them on the canvas app.

Creating Custom Components

To create the components in the Power Apps app studio, we first have to enable ‘Components’ in the experimental features tab from the advanced settings of the app.

Creating Custom Components

Date Picker

The current date control allows you to restrict only the year while configuring the control. Using already available controls, we can design a component for the date control that enables restricting to a range of dates. The display of the date control component is based on a gallery and is explained in detail here. We will start by creating a few custom properties for the component. The idea behind this date control is to enable functionality to restrict users to select the date from a specified range. For this, I created a “start date” and an “end date” property of data-type “date and time”. I have also added properties to customize the color of the different sub-controls of the component.

Date Picker

1. This is a label that displays the date selected from the custom date picker control component. The expression used on the “Text” property of this label:
Selected Date Label

2. This is an icon (‘calendar’) to expand the date picker. The expression used on the “OnSelect” property of this control:

Icon Calendar

Explanation: The visibility of the calendar is set here based on the “CalendarVisibility” variable. “SelectedRange” is a variable that sets the context for the appropriate month to be displayed on the date picker.

3. Upon clicking this icon, the user is navigated to the previous month. The expression used on the “OnSelect” property of this control is:

Previous Month Navigation

Explanation: This evaluates the month label based on the current month on the date picker and the result is the previous month w.r.t to the current month. The expression used on the “DisplayMode” property of this control:

Display Mode

4. This is a label control and displays the selected month and year on the date picker.

5. Upon clicking this icon, the user is navigated to the next month based on the current month. The expression used on the “OnSelect” property of this control is:

On Select

Explanation: This evaluates the month label based on the current month on the date picker and the result is the next month w.r.t to the current month. The expression used on the “DisplayMode” property of this control:

Display Mode

6. This is a gallery of buttons to show days week wise in a row. The expression used on the “OnSelect” property of the button inside of the gallery is:

On Select

Explanation: The “dateselected” variable value is set by clicking this button. The expression used on the “DisplayMode” property of this button control is:

Expression used on DisplayMode

Explanation: Here is the date validation that checks if the date is within the range of the “start date” and “end date” properties and is of the currently selected month. The expression used on the “Text” property of the button control is: (This expression has been referred from this reference link.)

Date Validation

Explanation: This gets the date as per the day from the date picker. The expression used on the “Items” property of the gallery control is: (This expression has been referred from this reference link.)

Items property gallery control

Explanation: This created the 42 cells for the date picker inside of the gallery control. The expression used on the “TemplateFill” property of the gallery control is:

Template Fill Property

Explanation: This highlights the currently selected item (date) in the gallery control.

The selected date from this component can be accessed through the “SelectedDate” property. Note: The color properties defined are used in the component on all the individual controls to sync the color coordination amongst them.

Regex

The current text input control allows you to choose the input text format as a number or text only. We can design a component that allows implementing regex and based on the property (formatting required) the text input can be formatted or restrict the user to input the text in the type defined in the component. If the input text does not match the type chosen on the component, the field is reset, and a warning message is displayed to the user.

Regex

7. This is a text input control and the text format is set through the “InputFormat” custom property created on this component. The expression used on the “OnChange” property of this control is:

Setting Text Format

Explanation: The “if” statement checks the “InputFormat” custom property for the text input against the respective regex statement and resets the input if the regex is not matched. The expression used on the “Mode” property of this control is:

Expression on Mode Property

Explanation: If the “InputFormat” on this component is set to “Password” then the mode will be set to password in order to mask the user input.

8. This is a label that is used to display the warning message to the user in case of a mismatch of the input based on the “InputFormat” property.

9. This is an icon used to display the warning sign to the user in case of a mismatch of the input based on the “InputFormat property.

Email:

This is an “InputFormat” and the regex that this type of input is being compared to is:

Input Format Comparison

URL:

This is an “InputFormat” and the regex that this type of input is being compared to is:

URL Input Format

Password:

This is an “InputFormat” and the regex that this type of input is being compared to is:

Password Input Comparison

The password should include at least one or more of an upper case, lower case letters, a number, and a special character.

Number Format:

Number Format

10. This is a label that displays the converted value based on the formatting defined for the input number. The expression used on the “Text” property of this control is:

Display Converted Value based on formatting

Explanation: If the text input is not empty, then the numbers entered will be formatted as “XXX-XXXXXX”

11. This is a text input control and the user will enter the number in this control. The “Format” property of this input is set to “Number” Note: The label in 10 is positioned in a way that it overlaps the text input control in 11. That is how the user can see the input formatted as set in the label.

Using the Custom Components

Currently, Power Apps restricts the use of a component in galleries, data cards, data tables, etc. We will design a custom sign up form and use the components created above to register a user and save the information on the data source.

Custom Sign Up Form

12. This is a regular text input field that will allow users to enter simple text. The property of this control is set to “text”.

13. This is a component that we have created earlier and the property for this is set to “URL”. When users enter the URL, it is matched against the regex and if it is not in a valid URL format the field is reset.

14. This field expects the input to be in the form of an email address. The component created earlier is used for this control and the property is set to “Email”. If the input does not match against the regex for email, the field will be reset and a warning message will be displayed.

15. The property on the component for this is set to “Password”. If the input does not match as the regex set for the password (as mentioned next to the “Password” label), the field will be reset and the warning message will be displayed.

16. This input field expects the input in the form of a “Phone Number” and appends the ‘-’ to the numbers entered based on the regex configured while creating the component.

17. The custom property created for the component can be set here. For each of the above fields, the type of input (regex expression) is defined by setting this property.

Sign Up Form18. This is the date control component and allows the user to pick a date by clicking on the calendar icon.

19. The custom properties for the date control component can be set here. The start date and the end date are configured to set a range of allowable dates. As an added feature, the colors for the individual controls within the date picker can also be configured here.

20. This is a clear field button and upon clicking this all the fields are cleared and the user creates a new entry.

21. This is a submit button and the user can submit their details by filling the form and pressing this button. Upon pressing this button, the details filled by the user are patched to the respective columns in the data source.

22. This is a warning generated for an inappropriate email address format that was entered by the user. As soon as the user clicks outside of this control, the field is reset.

23. This is the expanded date picker control and the dates that can be selected by the user are based on the start and end dates range configured in the app. The dates that cannot be selected are highlighted by the strikethrough and the buttons to navigate to the next/ previous months is disabled.

In this article, we have seen how we can create custom reusable components in canvas apps with low code and no code methodology. Components can be created with already available controls to overcome certain limitations and enhance the overall application.

How to use galleries to create dynamic entries in a data source in Power Apps

In this article, we will see how we can use galleries in Power Apps to create multiple rows for adding records to a data source. We will create dynamic entries in a gallery that looks like a form and adds/deletes a line/row with the press of a button.

Scenario: XYZ Inc. is a sales company that deals in sales of hardware components from manufacturers to retailers. User A is an on-field sales agent of XYZ Inc. and uses a static application to enter the order details from a customer. This application is further connected to a SharePoint list and creates a new item on the list whenever User A enters the detail and hits the submit button. The application provides the ability to enter only one order detail at a time and User A ends up putting more effort and time in entering those details.

We designed a customized Power App for XYZ Inc. where User A authenticates and lands on the Order Details page. User A can view all their previous entries, search for an order by entering the name of the customer, vendor, invoice number, etc. Functionality to add details is provided within the app. User A clicks the add new orders button and a form gallery is displayed. User A can add multiple records by creating new lines with the press of a button in the form gallery. A local collection with all the entries on the form is created in Power Apps. Once User A hits the “Finish & Save” button, an item for each entry is created on the SharePoint List and the Order Details gallery is updated with these newly added records.

Let’s look at the component-wise description of the controls in the app. The schema for data on the SharePoint List is:

S.No Column Name Column Data Type
1 Title (Order Number) Single Line of Text (255 Chars)
2 Customer Single Line of Text (255 Chars)
3 Shipping Address Single Line of Text (255 Chars)
4 Billing Address Single Line of Text (255 Chars)

On the App -> OnStart option, the expression used is:

ClearCollect(DynamicGallery,{Value:1}); Clear(OrderCollection); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order1"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order2"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order3"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order4"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order5"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order6"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order7"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order8"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order9")))

Explanation: Here, I am creating a collection “Dynamic Gallery” and this is the number of rows corresponding to the gallery control for creating the new orders. I am creating another collection “OrderCollection” and this collection contains all the Order Details from the SharePoint List named “OrderDets”.

Note: The “StartsWith” function is not delegable if a variable is passed as the second argument which is the reason why I am using multiple “Collect” statements to iterate over all possible values.

Galleries to create dynamic entries in a Data Source in PowerApps1

  1. This icon is the Home Page icon and clicking on this navigates the user to the home screen
  2. This icon is the Order Details Screen icon and clicking on this navigates the user to the Order Details Screen
  3. This icon is the Edit an Item icon and clicking on this allows the user to edit a particular item
  4. This icon is the Refresh Icon and clicking on this refreshes the data source, the expression used here is:

Refresh(OrderDets);Clear(OrderCollection); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order1"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order2"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order3"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order4"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order5"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order6"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order7"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order8"))); Collect(OrderCollection,Filter(OrderDets,StartsWith(Title,"Order9")))

Explanation: This refreshes the data source (“OrderDets” SharePoint List). It also clears the existing data from the “OrderCollection” collection and refills it with the new data.

  1. This is a gallery control that populates all the items of the SharePoint list
    • The expression used in the “Text” property of the “Order Details” label is:

"Order Details Total Orders Count:"&CountRows(OrderCollection)

Explanation: This expression concatenates the simple text (wrapped in “”) with the integer returned as a result of the “CountRows” function applied on the “OrderCollection” collection.

    • The expression used in the “Items” property of the Gallery is:

Sort(Filter(OrderCollection,If(!IsBlank(TextInput3.Text),StartsWith(Title,TextInput3.Tex t) ||
StartsWith(Customer,TextInput3.Text),true)),Value(Last(Split(Title,"r")).Result),Descen ding)

  1. This is a stack of Text labels used to show the information when an item is selected in the “Order Details” gallery. Expressions used on the labels:

Customer: Gallery5.Selected.Customer, Shipping Address: Gallery5.Selected.'Shipping Address', Billing Address: Gallery5.Selected.'Billing Address'

Explanation: Each line is an individual expression that fetched the attributes of the item selected in the “OrderDetails” gallery (Gallery5).

  1. This is a button control that enables the gallery control for the user to create dynamic lines and enter the order details. Expression used on this button:

ClearCollect(DynamicGallery,{Value:1});Set(NewOrder,true);Set(ResetGallery,false);Set(ResetGallery,true)

Explanation: Here I am recreating the “DynamicGallery” collection to accommodate just one value that corresponds to one row of the newly visible dynamic control gallery. I am setting up two new variables “NewOrder” and “ResetGallery” that control the visibility/reset of this dynamic gallery control, “Total Number of New Orders” and the “Finish and Save Button” controls.

Use Galleries to create dynamic entries in a Data Source in PowerApps 2

  1. This is the dynamic gallery control that I customized for user inputs. This gallery control has four text input controls to get the values for each of the attributes of the SharePoint List. The user can create multiple lines (one at a time) to add multiple records in one go. Data from each line is directly patched to the data source to create a new item. The user can remove the line by clicking the “X” icon. Configuration of the elements of the gallery control:

Gallery Properties:
Items: DynamicGallery, Visible: NewOrder,

Explanation: “DynamicGallery” is the collection that holds count of the orders to be added. “NewOrder” is a variable used to set the visibility of the controls.

  1. This icon is to remove the current row from the dynamic gallery. The expression used on this is:

Icon Properties:
OnSelect: Remove(DynamicGallery,ThisItem), Visible: If(ThisItem.Value <>
Last(Sort(DynamicGallery,Value,Ascending)).Value,true,false)

Explanation: We are removing the current item from the gallery by pressing this button (“OnSelect”) property. This icon’s visibility is set in a way that it shows up only if the current row is not the last item of the dynamic gallery.

  1. This icon is to add a new row/ line to the dynamic gallery. The expression used on this is:

Icon Properties:
OnSelect: Collect(DynamicGallery,{Value: ThisItem.Value + 1}), Visible: If(ThisItem.Value =
Last(Sort(DynamicGallery,Value,Ascending)).Value,true,false)

Explanation: We are adding a row/line by adding an item to the dynamic gallery collection by pressing this button (“OnSelect”) property. This icon’s visibility is set such that it shows up only on the last item of the dynamic gallery.

  1. This button is to perform the patch action on the “OrderDets” SharePoint List and it patches all the entries made by the User A in the dynamic gallery. The expression used in this control is:

ForAll(
Gallery3_1.AllItems,
Concurrent(
Patch(OrderDets,Defaults(OrderDets),{Title:TextInput2_6.Text,Customer:TextInput2 _7.Text,'Shipping Address':TextInput2_4.Text,'Billing Address':TextInput2_5.Text}), Patch(OrderCollection,Defaults(OrderCollection),{Title:TextInput2_6.Text,Customer: TextInput2_7.Text,'Shipping Address':TextInput2_4.Text,'Billing
Address':TextInput2_5.Text})));
ClearCollect(DynamicGallery,{Value:1});
Set(NewOrder,false);
Refresh(OrderDets)

Explanation: In this control, the concurrent function executes two patch commands, one in the data source (“OrderDets” SharePoint List) and the other on the local collection (“OrderCollection”) based on the inputs by the User A in each of the line/ row of the dynamic gallery. The “DynamicGallery” collection is being reset to hold a single value. The variable “NewOrder” is set to “false” to toggle the visibility of the dynamic gallery and then we finally refresh the data source.

Note: We are doing a concurrent patch instead of refreshing and recollecting the data in the collection “OrderCollection” from the data source to optimize the operations in the app.

  1. This is the text label control that displays the total number of current lines/rows User A has created. The expression used here is:

"Total Number of New Orders: "& CountRows(Gallery3_1.AllItems)

Explanation: Here the text “Total number of New Orders” is being concatenated with the number of rows of the dynamic gallery.

Use Galleries to create dynamic entries in a Data Source in PowerApps 3

  1. This is the text input control of the dynamic gallery. Here I am validating the text input and checking through the “OrderCollection” if the entered Order Number already exists. If it exists, the user will get an error notification. The expression used in the “OnChange” property of this control is:

If(TextInput2_6.Text in OrderCollection.Title,Notify("Order Number already exists!",NotificationType.Error))

Explanation: Here the if condition checks if the text of the text input control exists in the “Title” column of the “OrderCollection” collection and pops an error message if the condition is met.

  1. This is the error notification generated when the user enters an existing order number in the text input.

Use Galleries to create dynamic entries in a Data Source in PowerApps 4

  1. This is the App settings page of the app where we are increasing the soft limit of the data row limit on of non-delegable queries from 500 to 2000.

In this article, I have shown a basic implementation of the dynamic galleries concept and the multiple items/ records patch function for a SharePoint data source. This can be replicated with minor changes in the expressions for other data sources such as CDS, excel, SQL, etc.

I hope you found this interesting and it helped you. Thank you for reading!

Passing just about anything from Power Apps to Flow with the newly released JSON function

In this article, I will show you how we can send data from a Canvas App using the freshly released JSON function. I will pass data from the data table (of a SharePoint List), microphone (audio recording), and camera control (photo) to an MS Flow. A condition logic is set up in Flow to check the file type and create those accordingly in a dedicated SharePoint Library.

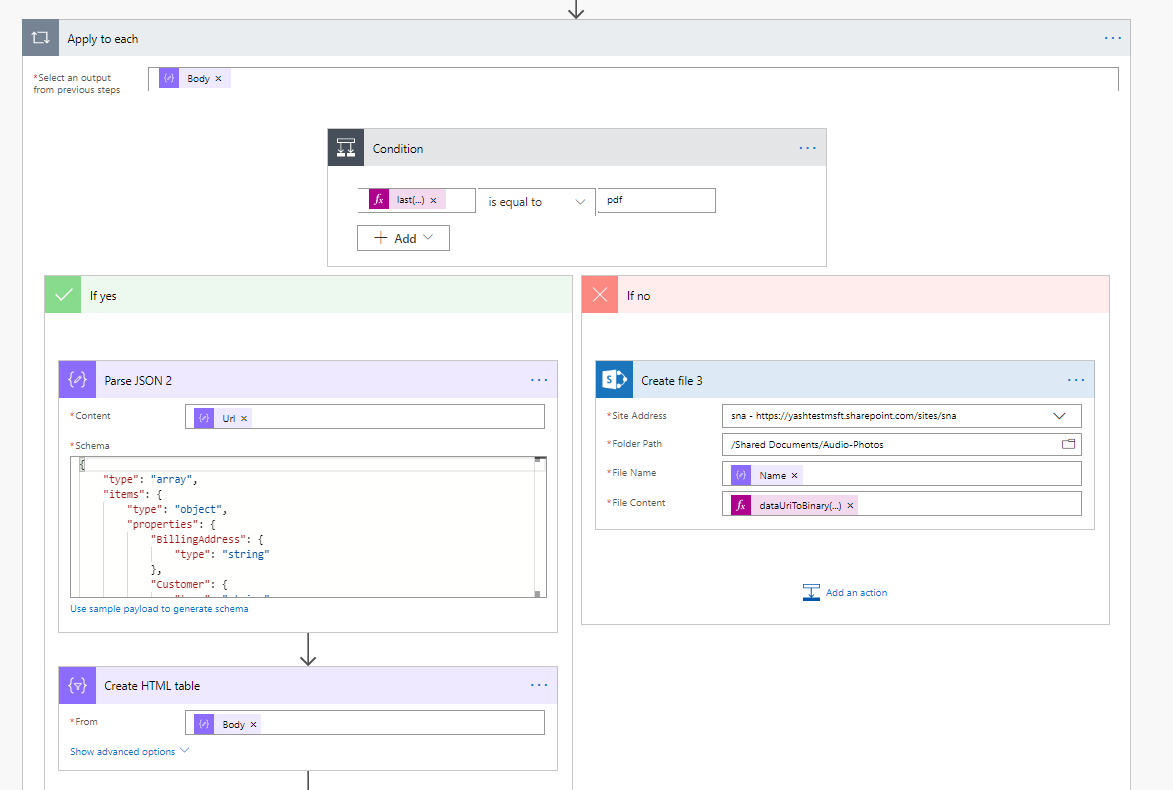

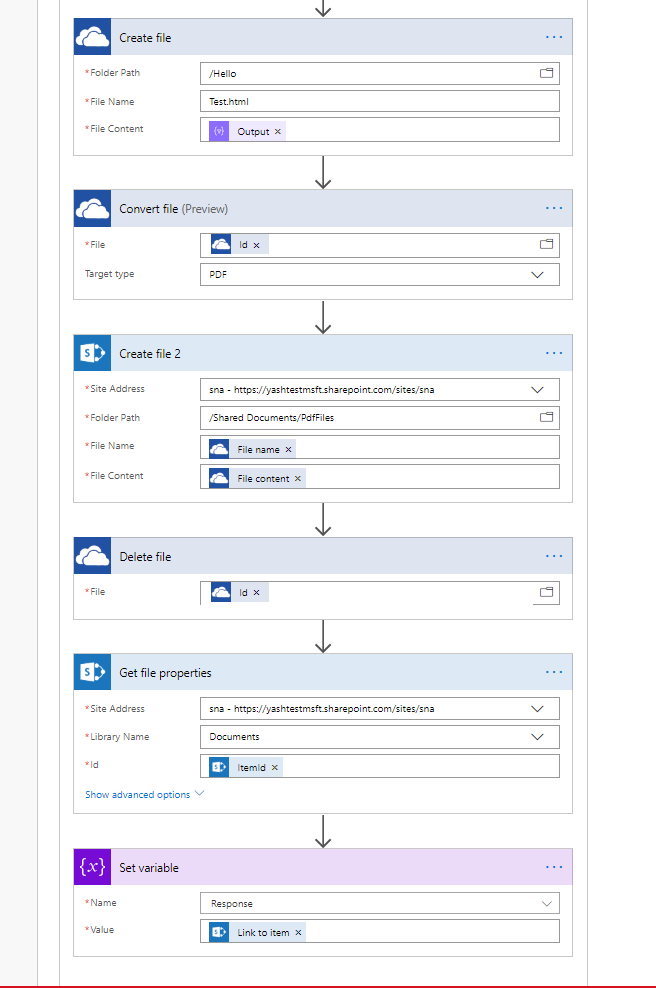

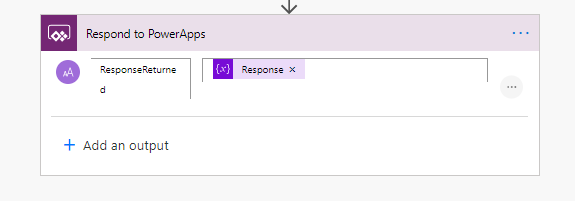

This article focuses on a canvas app and a flow. We will look at the component-wise structuring of both the app and the flow to achieve the objective.

Canvas App

Let’s look at the control-wise screens and functions used in the Canvas App.

  1. Data from a SharePoint list is displayed on a Gallery control in the app. A user can export this data to a PDF file and save it to SharePoint Document Library, and download it in the browser window.

Gallery Control

Here, we have a Gallery (‘Gallery2’) control that is populated with the data from a SharePoint List. The data is filtered to show only the first 10 records. The expression used on the ‘Items’ property of the Gallery control is:

FirstN(ShowColumns(OrderDets,"Title","Customer","ShippingAddress","BillingAddress"),10)

Explanation: Get the first 10 items from the ‘OrderDets’ SharePoint list and get the columns as specified.

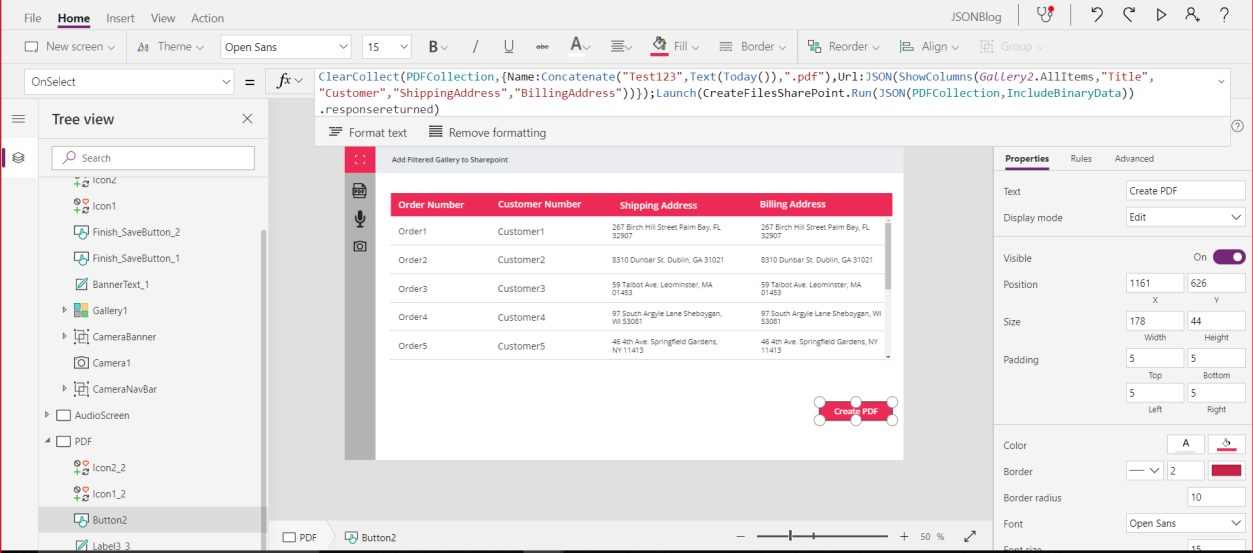

The ‘Create PDF’ button creates a local collection and then triggers an MS Flow and passes the collection as an argument along with the desired file name using the JSON function. Finally, once the PDF is created and the Flow is executed successfully, the PDF file is opened in a new tab of the browser. The expression used on this button is:

ClearCollect(PDFCollection,Name:Concatenate("Test123",Text(Today()),".pdf"),Url:JSON(ShowColumns(Gallery2.AllItems,"Title","Customer","ShippingAddress","BillingAddress"))});Launch(CreateFilesSharePoint.Run(JSON(PDFCollection,IncludeBinaryData)).responsereturned)

Explanation: The ‘ClearCollect’ function creates a collection named ‘PDFCollection’ and this stores the data in the gallery control and the name of the PDF file. The name of the PDF file is a concatenated string with the naming convention of ‘Test123-today’s date.pdf’. The ‘URL’ key inside the ‘PDFCollection’ stores string type value for the table formatted Gallery items, using the JSON function. This value is later parsed as JSON while sending as an argument to the Flow. The ‘Launch’ function opens a new browser window to launch the newly created PDF file’s URL received as a response from the ‘CreateFilesSharePoint’ flow.

  1. The Microphone control on the app is used to record audio. Multiple recordings can be created and played/viewed on the gallery control.

Microphone Gallery Control

Here, we have a Microphone control ‘Microphone1’ to record the audio inputs and store that into a local collection ‘AudioCollection’. The Expression used on the ‘OnStop’ property of the Microphone control is:

Collect(AudioCollection{Name:Concatenate("Audio",Text(Today()),Text(CountRows(AudioCollection)),".mp3"),Url:Microphone1.Audio})

Explanation: The ‘Collect’ function updates a collection ‘AudioCollection’ to store the audio recordings with the unique file name. The filename is a concatenated string of ‘Audio-Today’s date-index of the audio file.mp3’.

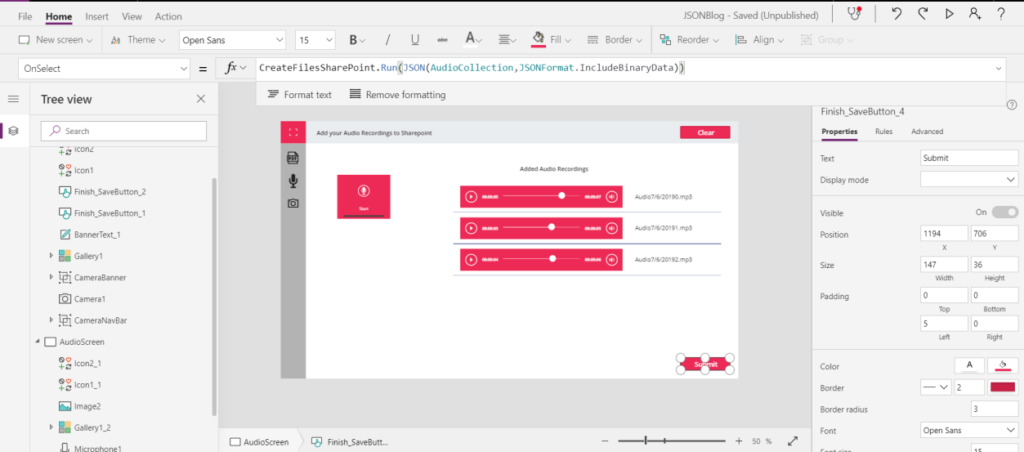

The ‘Submit’ button triggers the Flow and creates all the audio recordings as separate files on the SharePoint document library. The Expression used on this button is:

CreateFilesSharePoint.Run(JSON(AudioCollection,JSONFormat.IncludeBinaryData))

Explanation: Here the JSON function converts the audio file URL to binary data and sends the ‘AudioCollection’ data to the ‘CreateFilesSharePoint’ flow.

The ‘Clear’ button clears data from the ‘AudioCollection’.

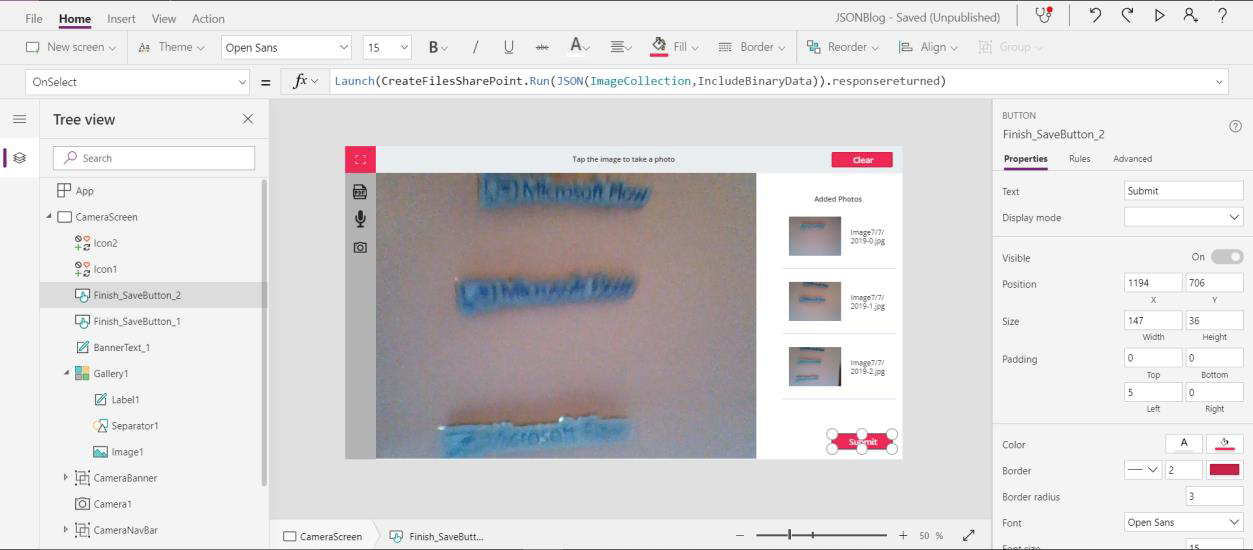

  1. The camera control is used to click photos in the canvas app. Multiple pictures can be captured and viewed on the Gallery control.

Camera Gallery Control

Here, we have a camera control ‘Camera1’ to capture a picture and store it into a local collection ‘ImageCollection’. The Expression used on the ‘OnSelect’ property of the Camera control is:

Collect(ImageCollection,{Name:Concatenate("Image",Text(Today()),"-",Text(CountRows(ImageCollection)),".jpg"),Url:Camera1.Photo})

Explanation: Collect function updates the ‘ImageCollection’ collection with the unique file name and the URL of the photo taken from the camera control. The name of the file is a concatenated string of ‘Image-Today’s Date-Index of the photo in the gallery control.jpg’.

The ‘Submit’ button triggers the Flow and creates all the images as separate files on the SharePoint document library. The Expression used on this button is:

CreateFilesSharePoint.Run(JSON(ImageCollection,JSONFormat.IncludeBinaryData))

Explanation: Here, the JSON function converts the image file URL to binary data and sends the ‘ImageCollection’ data to the ‘CreateFilesSharePoint’ flow.

The ‘Clear’ button clears data from the ‘ImageCollection’.

MS Flow

Coming to the ‘CreateFilesSharePoint’ flow: This flow is triggered by the button controls on the different screens in the Canvas App.

Action 1: Initialise a variable -> accommodates the input coming from the canvas app.

Action 2: Initialise a variable (2) -> To get the string to send a response back to the canvas app.

Action 3: Parse JSON: Get the dynamic data by parsing the data received from the canvas app according to the schema where we have an array that contains objects with the attributes: ‘Name – Filename’, ‘URL – Filecontent’.

Flow 1

Action 4: Apply to Each control: Iterate over each file item from the body output of the Parse JSON function.

Action 5: Condition control within the Apply to each Control: Split the file name and check if the extension is a PDF file.

If No,

Action 6: Create File 2 in SharePoint: to create a file for the image/ audio type in the defined library. If Yes,

Action 7: Parse JSON 2: The data content passed from the Power Apps as the URL key is now being parsed as individual elements to create an HTML table and then finally create a PDF file out of it.

Action 8: Create HTML Table: Creates an HTML table with the column names as headers and gets the data from the Parse JSON 2 action.

HTML Table from Parson JSON

Action 9: Create File in OneDrive: To create a temporary HTML file from the HTML table generated in the previous step and store it in the ‘Hello’ folder on the OneDrive.

Action 10: Convert File in OneDrive: To convert the previously created HTML file to a PDF document.

Action 11: Create File 2 in SharePoint: To create the PDF file from the converted file from the previous action. The file is stored in the specified document library on SharePoint.

Action 12: Delete File from OneDrive: To delete the temporary HTML file that was created in Action 9.

Action 13: Get file Properties SharePoint: To get the URL of the PDF file created in SharePoint.

Action 14: Set Variable: Set the URL to the file as a string value.

Create and Transform Files

Action 15: Respond to Power Apps: Send the URL of the file created on SharePoint to Power Apps. (Outside of the apply to each control)

Respond to PowerApps

In this blog, we have seen how we can use the JSON function to pass data from Power Apps to Flow. We were able to successfully send binary data (image files, audio recordings) and a gallery data table. We can also send collections, data directly from data sources with appropriate filters, etc. The attributes that can be sent via the JSON function does not support sending attachments, nested arrays/objects.

I hope you found this interesting and this helped you. Thank you for reading!
